Durofix Pro-Assembly Series Wireless 40V Li-ion Brushless Oil Pulse Tool, Auto Shut-off, with Options of 1/4″ Hex Shank, 3/8″ or 1/2″ Square Drive
Selection Guide
| Torque Range / Bolt Size | 1/4″ Hex Shank | 3/8″ Square | 1/2″ Square |
| 6 to 12 Nm / M6-M8 | RZ4012-D-WR12 | RZ4012-3-WR12 | N/A |
| 10 to 25 Nm / M8-M10 | RZ4012-D-WR25 | RZ4012-3-WR25 | N/A |
| 20 to 60 Nm / M10-M12 | N/A | RZ4012-3-WR60 | RZ4012-4-WR60 |
| 40 to 90 Nm / M10-M12 | N/A | N/A | RZ4012-4-WR90 |

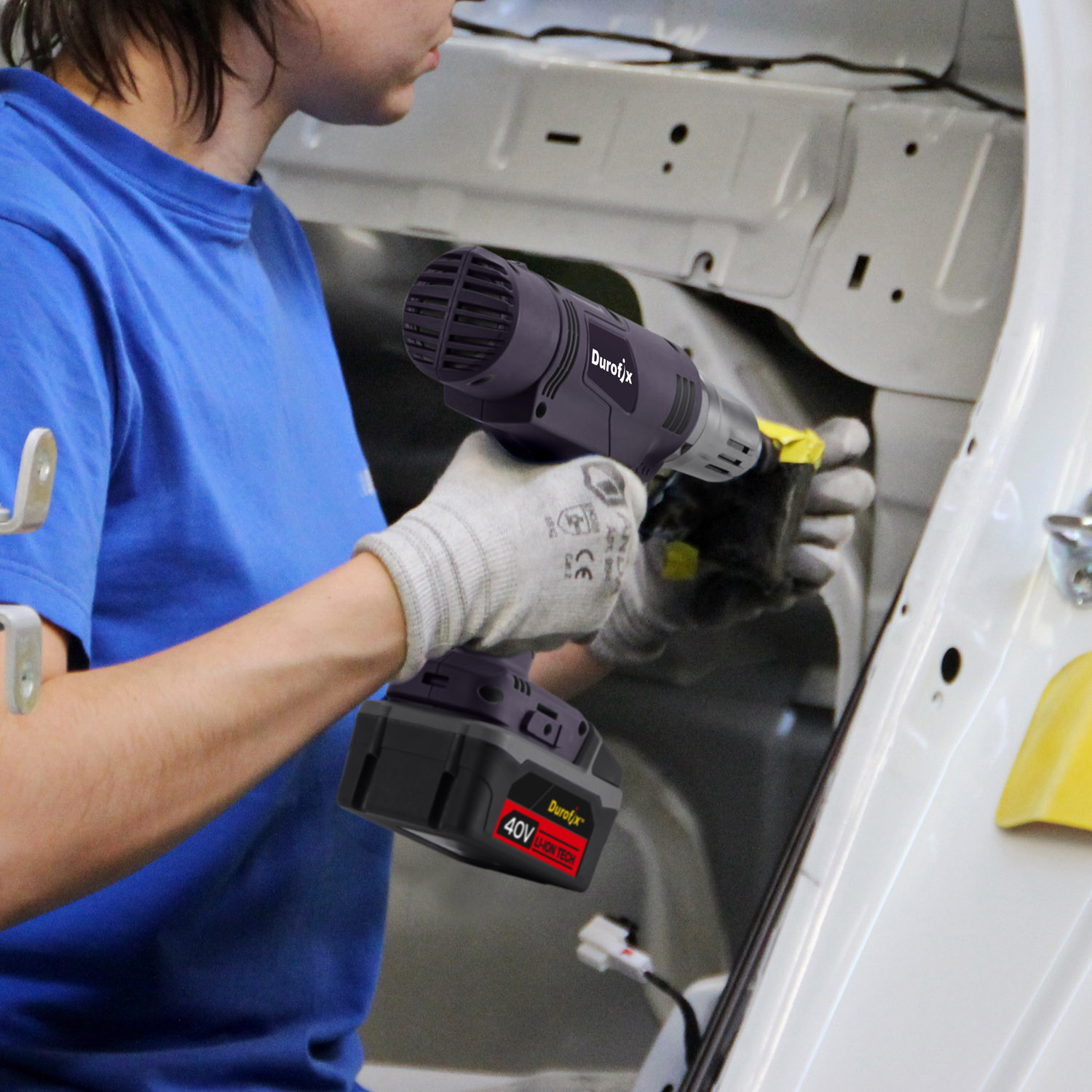

Pro-Assembly series is designed to precision assembly process on work floor. With precision torque setting, auto shut-off features, and wireless features & mobile app (depends on models), the Pro-Assembly series is the best choice for professional manufacturing.
Oil Pulse technology delivers no torque reaction force. When combing cordless & our patent pending cooling technology, it also deliver low noise & vibration, wider torque setting, and improve working environment
Features
- Brushless Motor – Energy saving, higher efficient and longer life-span
- Oil Pulse Unit connected directly to motor, reduces torque reaction, vibration & noise
- Precise Auto shut-off when torque reaches the set value. (refer to specific models for torque range)
- Built-in wireless communication with mobile device or dedicated wireless receiver box (sold separately)
- Mobile device app and wireless receiver box provide remote control, real time monitoring and recording of operation details (cycle, rotation, screw run-time).
- LED & Buzzer indicator confirms joint status for OK (green) or NG (red)
- Cordless 40V Battery Platform (P40 ) high voltage deliver same power with less current drawn and higher efficiency
- Wide range of torque and drive type: 2~12 / 10~25 / 20~60 Nm / 40~90 Nm, with 1/4″ Hex Shank, 3/8″ or 1/2″ Square Drive
Pro-Assembly Wireless Data Comm. allow plant manager to remotely control and monitor devices through either Mobile App (iOS, iPad) or through wireless receiver (DR001, Sold Separately) connected to existing PLC system. The tool can store up to 1,000 joint rundown data which could be accessed by Mobile App or Receiver/PLC in real time, or downloaded wireless in bulk at day-end.
Mobile App Features:- Remotely Fine tune torque and other settings for more precise applications (Max Speed / Duty, Operation cycle & Rotation, Turns, Screw Runtime)
- Record Torque Settings Pattern
- Real-Time monitoring up to 10 tools at jobsite
- Collect all fastening data in assembly process
- Wireless Connection with Pro-Assembly Tool (One-to-One)
- Compatible to plant PLC System
- Collect fastening data in assembly process directly to PLC
Specifications
- Built-in Wireless Functions (Through Mobile App, or Wireless Receiver Box DR001)
- Torque Range: 6~12 Nm (WR12), 10~25 (WR25), 20~60 Nm (WR60), 40~90 Nm (WR90)
- Voltage: 40V
- Battery: P40 platform
- Programmed Speed: 800 to 6,000 RPM
- Net Weight: 2.25 kg (4.95 lbs)
- Dimensions: 265 mm x 78 mm x 251 mm (10.4″ x 3.1″ x 9.9″)
Mobile App Functions:
- Fine tune torque setting for more precise applications (Max Speed / Duty, Operation cycle & Rotation, Turns, Screw Runtime)
- Record Torque Settings Pattern
- Real-Time monitoring up to 10 tools at jobsite
- Collect all fastening data in assembly process
