| Options |
RZ6008-28DL |
RZ6008-25DS |
RZ6008-28FPL |
RZ6008-28FP |
RZ6008-KCA |
Attachment |
Rigid Shaft |
Rigid Shaft |
Flex Shaft |
Flex Shaft |
Wallbrator |
Shaft Assembly Length |
27-15/16″ |
20-9/16″ |
48-5/16″ |
32-7/16″ |
6-11/16″ |
|
|
710 mm | 522 mm | 1,228 mm | 824 mm |
169.5 mm |
No Load Vibrations (VPM) |
12,500 |
13,000 | 13,000 | 12,500 |
9,500 |
Max Rum Time (120 Wh Battery) |
100 mins |
120 mins | 130 mins | 200 mins |
130 mins |
Battery Platform |
DXP 60V |
DXP 60V | DXP 60V | DXP 60V |
DXP 60V |
Vibrator Head (Dia x Length) |
Ø 1-1/8″ x 25″ |
Ø 1″ x 17-5/8″ | Ø 1-1/8″ x 7-5/16″ | Ø 1-1/8″ x 7-5/16″ |
Ø 3″ x 5-1/4″ |
|
Ø 28 mm x 635 mm |
Ø 25 mm x 447 mm | Ø 28 mm x 186 mm | Ø 28 mm x 186 mm |
Ø 76 mm x 133 mm |
|
Overall Length |
936 mm |
748 mm | 1,474 mm | 1,070 mm |
396 mm |
Net Weight |
11.2 lbs (5.12 kg) |
9.28 lbs (4.22 kg) | 10.82 lbs (4.92 kg) | 8.62 lbs (4.92 kg) |
8.84 lbs (4.02 kg) |
60V Cordless Li-ion BRUSHLESS Concrete Vibrator. RZ6008, with options of vibrator shaft attachments
Durofix 60V series tools are designed with power and efficiency in mind for professional users by utilizing 60V Li-ion battery technology and advanced Brushless Motor (BLDC).
The series delivers high power, high efficiency, less heat, less maintenance, long run-time & long lifespan.
Features
* 60V platform – 60V Li-ion battery deliver higher power & more than 35%* longer run-time by drawing less current
* Interchangeable Attachments for various applications (Rigid, Flexible and Wallbrator)
* High efficiency: max VPM at 13,000 per minute (varies with attachment)
* Max. 200 mins run time (varies with attachment)
* Brushless motor delivers high efficiency, lower maintenance & longer lifespan
* Battery pack protective cover
(*35% longer run-time compared to 20V li-ion battery with same power capacity in Watt-hours)
Specifications
RZ6008-28DL (28″ Rigid Shaft, 28 mm diameter)
* Voltage: 60V (60V battery platform)
* No Load Vibrations /Min: 12,500 VPM
* Vibration Head (Dia. x Length): Ø 1-1/8″ x 25″ (Ø 28 mm x 635 mm)
* Rigid Shaft assembly length: 27-15/16″ (710 mm)
* Overall length: 936 mm
* Max Run Time: 100 mins
* Tool Weight: 11.2 lbs (5.12 kg)
RZ6008-25DS (20″ Rigid Shaft, 25 mm diameter)
* Voltage: 60V (60V battery platform)
* No Load Vibrations /Min: 13,000 VPM
* Vibration Head (Dia. x Length): Ø 1″ x 17-5/8″ (Ø 25 mm x 447 mm)
* Rigid Shaft assembly length: 20-9/16″ (522 mm)
* Overall length: 748 mm
* Max Run Time: 120 mins
* Tool Weight: 9.28 lbs (4.22 kg)

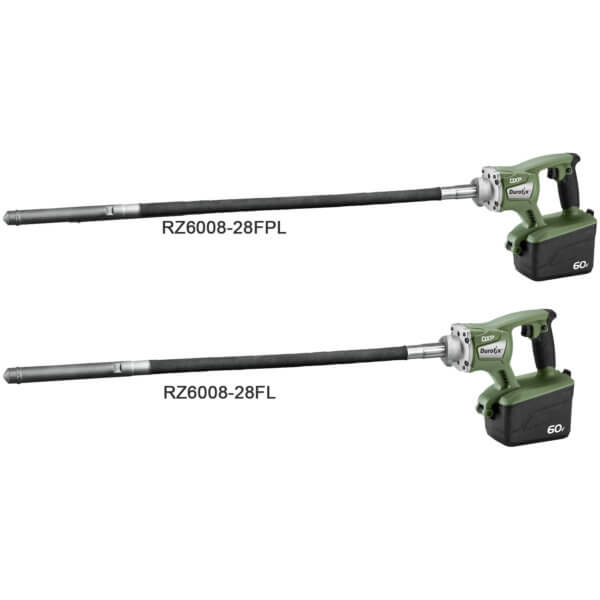

RZ6008-28FPL (48″ Flexible Shaft)
* Voltage: 60V (60V battery platform)
* No Load Vibrations /Min: 13,000 VPM
* Vibration Head (Dia. x Length): Ø 1-1/8″ x 7-5/16″ (Ø 28 mm x 186 mm)
* Flexible Shaft assembly length: 48-5/16″ (1,228 mm)
* Overall length: 1,474 mm
* Max Run Time: 130 mins
* Tool Weight: 10.82 lbs (4.92 kg)
RZ6008-28FP (32″ Flexible Shaft)
* Voltage: 60V (60V battery platform)
* No Load Vibrations /Min: 12,500 VPM
* Vibration Head (Dia. x Length): Ø 1-1/8″ x 7-5/16″ (Ø 28 mm x 186 mm)
* Flexible Shaft assembly length: 32-7/16″ (824 mm)
* Overall length: 1,070 mm
* Max Run Time: 200 mins
* Tool Weight: 8.62 lbs (4.92 kg)
RZ6008-KCA (Wallbrator)
* Voltage: 60V (60V battery platform)
* No Load Vibrations /Min: 9,500 VPM
* Vibration Head (Dia. x Length): Ø 3″ x 5-1/4″ (Ø 76 mm x 133mm)
* Wallbrator assembly length: 6-11/16″ (169.5 mm)
* Overall length: 396 mm
* Max Run Time: 130 mins
* Tool Weight: 8.84 lbs (4.02 kg)
