Options |
RV2048-W12RV208-WR12 |
RV2048-W6RV2048-WR6 |
RV2048-W2RV2048-WR2 |
Torque Range |
3 to 12 Nm |
1 to 6 Nm |
0.5 to 2 Nm |
(2.2 to 8.9 ft-lbs) |
(0.7 to 4.4 ft-lbs) |
(0.37 to 1.5 ft-lbs) |
|
No Load Speed |
0 to 800 RPM |
0 to 1,000 RPM |
0 to 1,000 RPM |
Durofix Pro-Assembly Series Wireless 20V Li-ion Brushless Driver, Auto Shut-off,
With options of torque range:
* 3 to 12 Nm (2.2 to 8.9 ft-lbs)
* 1 to 6 Nm (0.7 to 4.4 ft-lbs)
* 0.5 to 2 Nm (0.37 to 1.5 ft-lbs)
Pro-Assembly series is designed to precision assembly process on work floor. With precision torque setting, auto shut-off features, and wireless features & mobile app (depends on models), the Pro-Assembly series is the best choice for professional manufacturing.
See Wireless Data Comm. in Action
Pro-Assembly Built-in Wireless Data Comm. allow plant manager to remotely control and monitor devices through wireless receiver (DR002, Sold Separately). The tool can store up to 1,000 joint rundown data and be accessed through wireless receiver via WIFI or Ethernet in real time, or in bulk.
Wireless Receiver Box (DR002) Features:
- Wireless Connection with Pro-Assembly Tool
- Compatible to plant PLC System
- Remotely Fine tune torque and other settings for more precise applications (Max Speed / Duty, Operation cycle & Rotation, Turns, Screw Runtime)
- Record Torque Settings Pattern
- Real-Time monitoring up to 10 tools at jobsite (PC Monitoring Mode)
- Collect all fastening data in assembly process
Features

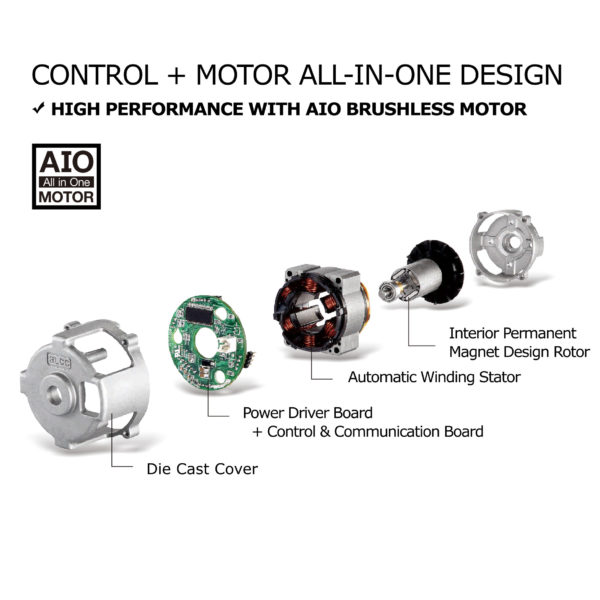

* Brushless Motor – Energy saving, higher efficient and longer life-span
* Precise Auto shut-off when torque reaches the set value. (refer to specific models for torque range)
* Built-in wireless communication to mobile device host for control, real time monitoring and recording of operation details (cycle, rotation, screw run-time).
* Ergonomics, lightweight and low reaction force
* LED & Buzzer indicator confirms joint status for OK (green) or NG (red)
* Cordless P20 battery platform with LED battery level indicator
* Drive size: 1/4″ Hex
Specifications
RV2048-W12
* Torque Range: 3 to 12 Nm (2.2 to 8.9 ft-lbs)
* No load speed: 0 to 800 RPM
RV2048-W6
* Torque Range: 1 to 6 Nm (0.7 to 4.4 ft-lbs)
* No load speed: 0 to 1,000 RPM
RV2048-W2
* Torque Range: 0.5 to 2 Nm (0.37 to 1.5 ft-lbs)
* No load speed: 0 to 1,000 RPM
* Drive Size: 1/4″ Hex
* Built-in Wireless Functions (Host Mobile App available for customization)
* Voltage: 20V
* Battery: P20 platform
* Cmk value (based on 6 sigma): > 1.67 (at +/- 10%)
* Net Weight: 1.75 kg (3.85 lbs)
* Dimensions: 212 mm x 78 mm x 256mm (8.3″ x 3.1″ x 10.1″)
