Quick Start Guide of Digital Torque Adapter

Applicable Model# ARM602-3, ARM602-4x, RM602-3, RM604-4A

Check also FAQ page

Step 1:

Insert Batteries (2x CR2032)

  • ARM602 x insert batteries


Step 2:

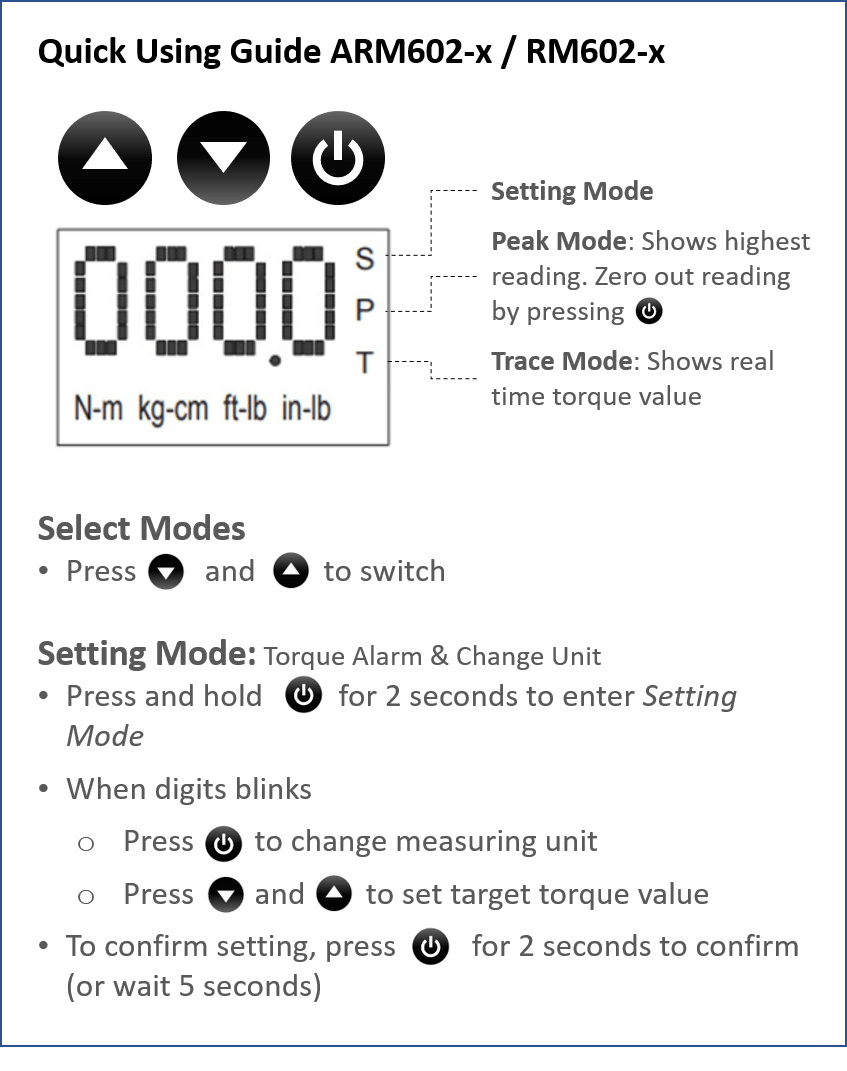

Set the Torque Alert Value. See below quick instructions for Changing mode (Peak, Trace, Setup), changing unit, setting Alarm

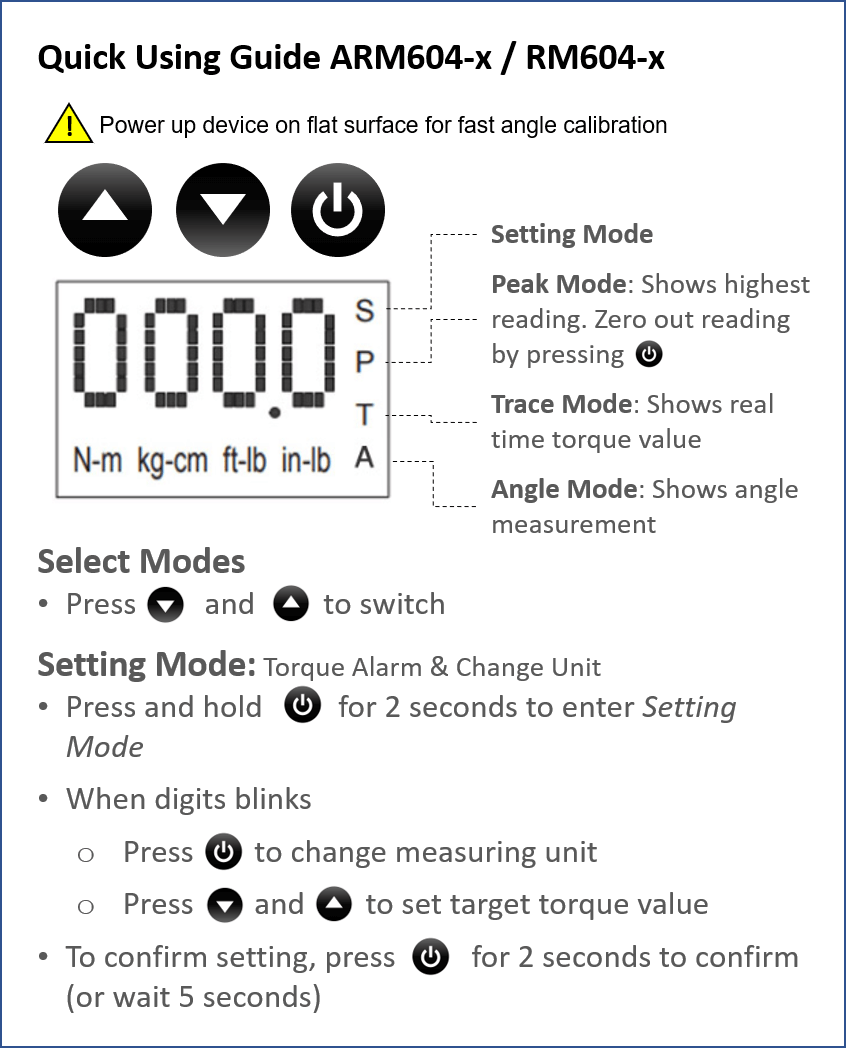

Angle mode available for selected models only (e.g. RM604-4A)



Step 3:

Apply Adapter on Bolts.

Remember below to prevent possible damage to the device

  • Do NOT hold adapter while torquing
  • Do NOT over torque
  • Do NOT use adapter with Power tool
  • ARM602 x do not hold 800px
